ClickHouse chDB integration

Hex lets ClickHouse users run Python workflows using chDB, ClickHouse's in-process database. A drop-in Pandas replacement, this makes it easy to work with large datasets without loading everything into the memory in your Hex project.

Enable chDB​

chDB can be enabled on both workspace and project-level data connections (similar to other connection integrations).

To enable chDB on a ClickHouse data connection:

  1. Open the ClickHouse data connection settings.
  2. Scroll to the Advanced section.
  3. Toggle on chDB

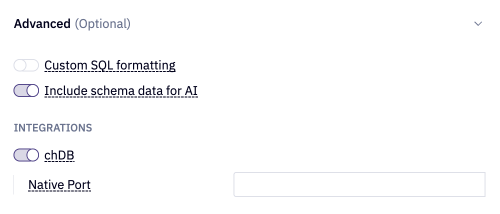

chDB toggle in data connection settings

Getting started with chDB in Hex​

chDB operates using lazy evaluation, meaning commands execute only when action calls are performed. Data materializes and queries run only when needed, making this a very effective way to manage memory usage in Hex when working with large ClickHouse datasets.

To use chDB in a project, first import the data connection that has chDB enabled into your project. Once imported, you can create a chDB session with Hex's easy button:

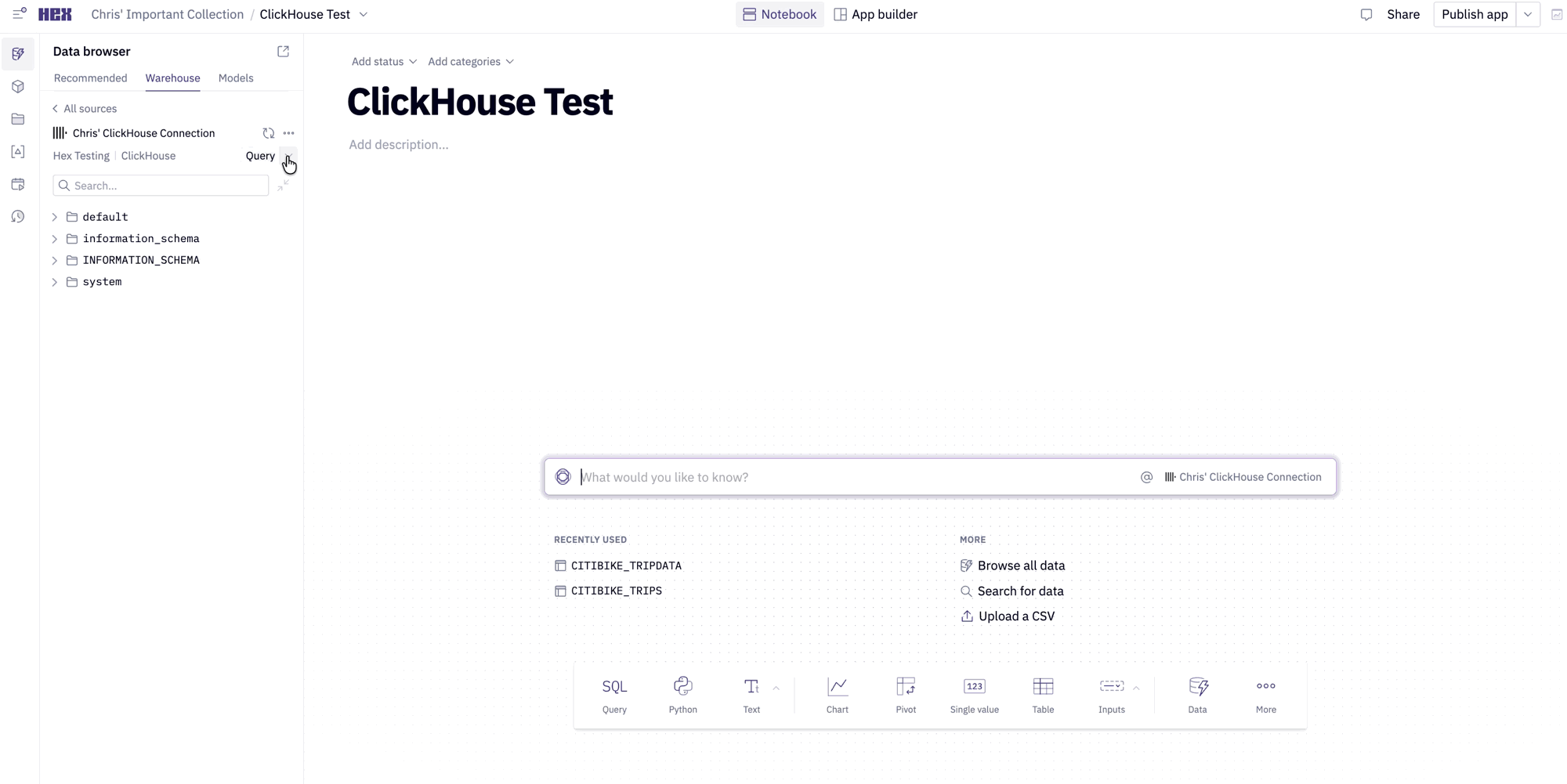

Creating a ClickHouse session from the Data browser

info

Hex’s ClickHouse data connection already stores the network and auth details allowing Hex to read those settings and instantiate a ClickHouse DataStore. Hex's built-in hextoolkit package securely handles this allowing you quickly and securely create your chDB connection to ClickHouse. The following code is generated:

import hextoolkit
hex_clickhouse_conn = hextoolkit.get_data_connection('My ClickHouse Connection')
session = hex_clickhouse_conn.get_chdb_session()
warning
  • The get_chdb_session function is only available for Python 3.12+ kernels

Working with chDB in Hex​

Once your connection is created, you can write SQL and perform Pythonic operations, all executed directly in ClickHouse:

ds = session.sql("SELECT * FROM transactions_table")
filtered = ds[ds["event_type"] == "purchase"]

To use the DataStore object as the input to a chart, pivot or other cell, you'll need to convert it to a Pandas dataframe using the .to_pandas() method

# Materialize only when needed
df = filtered.to_pandas()

For more detailed examples and inner workings of the package, please see our chDB Tutorial project.

tip
  • You can duplicate this project into your own Hex workspace to run the notebook
