Connect to RDS (AWS)

Securely connect your Hex workspace to Amazon RDS (AWS).

info
  • Users need the Admin workspace role to create a shared workspace data connection.
  • Users need Can Edit or higher project permissions to create project data connections.
  • Hex's RDS connection supports the PostgreSQL and MySQL database engines only.

Amazon RDS (Relational Database Service) is an Amazon Web Services (AWS) managed relational database service that runs and operates relational database engines for you, handling provisioning, patching, backups, and scaling. RDS hosts engines such as PostgreSQL and MySQL, so it's a common home for operational data in AWS-native environments.

RDS is a good fit for connecting to Hex when your operational data already lives there and you need direct access for queries and visualizations. Because the underlying engines (e.g. Postgres, MySQL) are optimized for transactional processing (OLTP) rather than analytics (OLAP), performance can degrade with very large datasets and complex analytical queries.

How to get set up​

  1. Sign in to the AWS RDS console, or create an account if you don't have one, and identify the RDS instance you want to connect to.
  2. Set up the credentials Hex will use to access RDS. RDS connections authenticate with an IAM role that Hex assumes to obtain temporary credentials, so no long-lived secrets are stored in Hex. See IAM role authentication below.
  3. In Hex, go to Settings → Data sources.
  4. Click + Connection, select RDS, then choose either MySQL or Postgres for your database engine.
  5. Fill out the required fields.

Basic settings​

  1. Name and Description - Set a display name and optional description to help identify your data connection.
  2. Host - The endpoint address of your RDS instance.
  3. Port - The port used for secure native connections to your RDS instance.
  4. Database - The name of the database you're connecting to.
  5. AWS region - The AWS region your RDS instance runs in.

RDS connections authenticate with an IAM role. See IAM role authentication for the authentication fields and full setup.

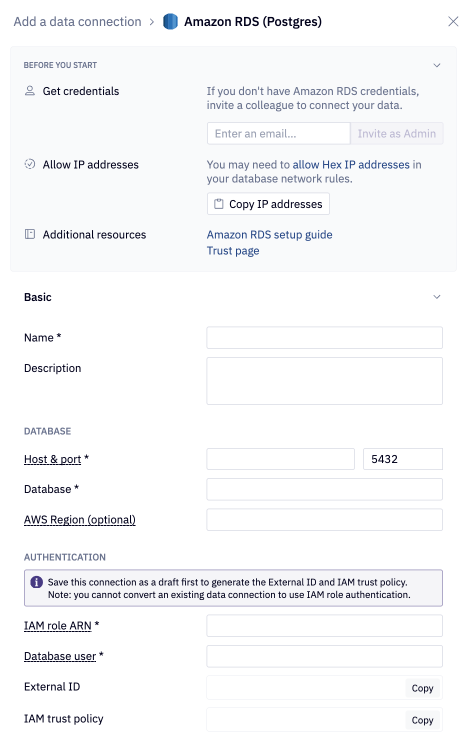

Amazon RDS data connection form

IAM role authentication​

RDS connections authenticate with an IAM role. With IAM role authentication, you don't store long-lived AWS credentials in Hex. Instead, you create an IAM role in your AWS account and grant Hex's AWS principal permission to assume it. Hex calls sts:AssumeRole to obtain temporary credentials, scoped by an external ID.

  1. Create an IAM role in AWS
    In the AWS IAM console, create a new role with a policy granting the appropriate RDS access for your data connection and a placeholder trust policy. Copy the role's ARN.

  2. Save a draft connection in Hex
    In the RDS connection form, enter the Role ARN for the IAM role Hex should assume and the database user Hex connects as, then save the connection as a draft.

  3. Update the trust policy in AWS
    Hex generates the external ID and IAM trust policy when you save the draft. Copy them into your role's trust policy in AWS.

  4. Finalize the connection in Hex
    Return to the draft in Hex and complete the setup.

caution

Hex includes the external ID on sts:AssumeRole but not on sts:TagSession. If your trust policy applies an sts:ExternalId condition to both actions, validation fails with an AccessDenied error on TagSession. Split your trust policy into separate statements (with distinct SIDs) and apply the external ID condition to sts:AssumeRole only.

Additional settings​

The data connection form includes several optional sections:

tip

If you use a firewall to restrict database access, you'll need to add Hex's IP addresses to your allowlist.
